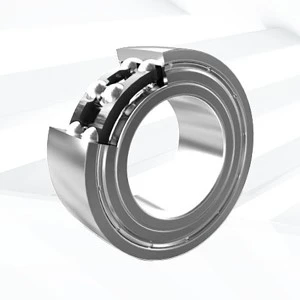

Angular Contact Ball Bearings Catalog

Product NameConstrucciónTipo de juntaMaterialDiámetroDiámetro exteriorAnchuraCarga radial dinámicaCarga radial estáticaPeso
S5200 Double Row Abrir Acero inoxidable 10 mm 30 mm 14.3 mm 6.95 kN 3.8 kN 0.049 kg
S5200-2RS Double Row Sealed Acero inoxidable 10 mm 30 mm 14.3 mm 6.95 kN 3.8 kN 0.049 kg
S5200-ZZ Double Row Shielded Acero inoxidable 10 mm 30 mm 14.3 mm 6.95 kN 3.8 kN 0.049 kg
S5201 Double Row Abrir Acero inoxidable 12 mm 32 mm 15.9 mm 9.15 kN 5.05 kN 0.057 kg
S5201-2RS Double Row Sealed Acero inoxidable 12 mm 32 mm 15.9 mm 7.6 kN 4.5 kN 0.057 kg
S5201-ZZ Double Row Shielded Acero inoxidable 12 mm 32 mm 15.9 mm 7.6 kN 4.5 kN 0.057 kg
S5202 Double Row Abrir Acero inoxidable 15 mm 35 mm 15.9 mm 10 kN 6.05 kN 0.064 kg
S5202-2RS Double Row Sealed Acero inoxidable 15 mm 35 mm 15.9 mm 8.2 kN 5.25 kN 0.064 kg
S5202-ZZ Double Row Shielded Acero inoxidable 15 mm 35 mm 15.9 mm 8.2 kN 5.25 kN 0.064 kg
S5203 Double Row Abrir Acero inoxidable 17 mm 40 mm 17.5 mm 12.8 kN 7.9 kN 0.096 kg
S5203-2RS Double Row Sealed Acero inoxidable 17 mm 40 mm 17.5 mm 10.8 kN 7.1 kN 0.096 kg
S5203-ZZ Double Row Shielded Acero inoxidable 17 mm 40 mm 17.5 mm 10.8 kN 7.1 kN 0.096 kg
S5204 Double Row Abrir Acero inoxidable 20 mm 47 mm 20.6 mm 19 kN 12.1 kN 0.153 kg
S5204-2RS Double Row Sealed Acero inoxidable 20 mm 47 mm 20.6 mm 15.8 kN 10.1 kN 0.153 kg
S5204-ZZ Double Row Shielded Acero inoxidable 20 mm 47 mm 20.6 mm 15.8 kN 10.1 kN 0.153 kg
S5205 Double Row Abrir Acero inoxidable 25 mm 52 mm 20.6 mm 20.6 kN 14.3 kN 0.175 kg
S5205-2RS Double Row Sealed Acero inoxidable 25 mm 52 mm 20.6 mm 18.2 kN 13.2 kN 0.175 kg
S5205-ZZ Double Row Shielded Acero inoxidable 25 mm 52 mm 20.6 mm 18.2 kN 13.2 kN 0.175 kg
S5206 Double Row Abrir Acero inoxidable 30 mm 62 mm 23.8 mm 28.6 kN 20.4 kN 0.286 kg
S5206-2RS Double Row Sealed Acero inoxidable 30 mm 62 mm 23.8 mm 26.1 kN 19.7 kN 0.286 kg
S5206-ZZ Double Row Shielded Acero inoxidable 30 mm 62 mm 23.8 mm 26.1 kN 19.7 kN 0.286 kg
S5207 Double Row Abrir Acero inoxidable 35 mm 72 mm 27 mm 38 kN 27.8 kN 0.436 kg
S5207-2RS Double Row Sealed Acero inoxidable 35 mm 72 mm 27 mm 33 kN 24.5 kN 0.436 kg
S5207-ZZ Double Row Shielded Acero inoxidable 35 mm 72 mm 27 mm 33 kN 24.5 kN 0.436 kg
S5208 Double Row Abrir Acero inoxidable 40 mm 80 mm 30.2 mm 42.5 kN 32.5 kN 0.59 kg
S5208-2RS Double Row Sealed Acero inoxidable 40 mm 80 mm 30.2 mm 40,5 kN 32 kN 0.59 kg
S5208-ZZ Double Row Shielded Acero inoxidable 40 mm 80 mm 30.2 mm 40,5 kN 32 kN 0.59 kg
S5209 Double Row Abrir Acero inoxidable 45 mm 85 mm 30.2 mm 48 kN 37 kN 0.64 kg
S5210 Double Row Abrir Acero inoxidable 50 mm 90 mm 30.2 mm 51 kN 42 kN 0.689 kg
S5211 Double Row Abrir Acero inoxidable 55 mm 100 mm 33.3 mm 63 kN 53 kN 0.986 kg
S5212 Double Row Abrir Acero inoxidable 60 mm 110 mm 36.5 mm 71.5 kN 58.5 kN 1.27 kg
S5213 Double Row Abrir Acero inoxidable 65 mm 120 mm 38.1 mm 83.5 kN 72.5 kN 1.57 kg
S5214 Double Row Abrir Acero inoxidable 70 mm 125 mm 39.7 mm 90.5 kN 79.5 kN 1.8 kg
S5215 Double Row Abrir Acero inoxidable 75 mm 130 mm 41.3 mm 90 kN 80.5 kN 1.9 kg
S5216 Double Row Abrir Acero inoxidable 80 mm 140 mm 44.4 mm 106 kN 95.5 kN 2.39 kg
S5217 Double Row Abrir Acero inoxidable 85 mm 150 mm 49.2 mm 112 kN 106 kN 3,06 kg
S5218 Double Row Abrir Acero inoxidable 90 mm 160 mm 52.4 mm 140 kN 129 kN 3.73 kg
S5219 Double Row Abrir Acero inoxidable 95 mm 170 mm 55.6 mm 159 kN 148 kN 4.86 kg
S5220 Double Row Abrir Acero inoxidable 100 mm 180 mm 60.3 mm 178 kN 167 kN 5.94 kg
S5302 Double Row Abrir Acero inoxidable 15 mm 42 mm 19 mm 17.2 kN 10.1 kN 0.132 kg
S5302-2RS Double Row Sealed Acero inoxidable 15 mm 42 mm 19 mm 14.2 kN 8.85 kN 0.132 kg
S5302-ZZ Double Row Shielded Acero inoxidable 15 mm 42 mm 19 mm 14.2 kN 8.85 kN 0.132 kg
S5303 Double Row Abrir Acero inoxidable 17 mm 47 mm 22.2 mm 20.4 kN 12.1 kN 0,181 kg
S5303-2RS Double Row Sealed Acero inoxidable 17 mm 47 mm 22.2 mm 17.4 kN 10.4 kN 0,181 kg
S5303-ZZ Double Row Shielded Acero inoxidable 17 mm 47 mm 22.2 mm 17.4 kN 10.4 kN 0,181 kg
S5304 Double Row Abrir Acero inoxidable 20 mm 52 mm 22.2 mm 20.6 kN 12.7 kN 0.217 kg
S5304-2RS Double Row Sealed Acero inoxidable 20 mm 52 mm 22.2 mm 19.1 kN 12.4 kN 0.217 kg
S5304-ZZ Double Row Shielded Acero inoxidable 20 mm 52 mm 22.2 mm 19.1 kN 12.4 kN 0.217 kg
S5305 Double Row Abrir Acero inoxidable 25 mm 62 mm 25.4 mm 30.5 kN 20.5 kN 0.362 kg
S5305-2RS Double Row Sealed Acero inoxidable 25 mm 62 mm 25.4 mm 26.5 kN 17.9 kN 0.362 kg
S5305-ZZ Double Row Shielded Acero inoxidable 25 mm 62 mm 25.4 mm 26.5 kN 17.9 kN 0.362 kg
S5306 Double Row Abrir Acero inoxidable 30 mm 72 mm 30.2 mm 39,5 kN 27.5 kN 0.553 kg
S5306-2RS Double Row Sealed Acero inoxidable 30 mm 72 mm 30.2 mm 33 kN 24.3 kN 0.553 kg
S5307 Double Row Abrir Acero inoxidable 35 mm 80 mm 34.9 mm 49.5 kN 35 kN 0.766 kg
S5307-2RS Double Row Sealed Acero inoxidable 35 mm 80 mm 34.9 mm 49.5 kN 35 kN 0.766 kg
S5308 Double Row Abrir Acero inoxidable 40 mm 90 mm 36.5 mm 60.5 kN 44 kN 1,01 kg
S5308-2RS Double Row Sealed Acero inoxidable 40 mm 90 mm 36.5 mm 55 kN 40 kN 1,01 kg
S5309 Double Row Abrir Acero inoxidable 45 mm 100 mm 39.7 mm 72.5 kN 54 kN 1.34 kg
S5310 Double Row Abrir Acero inoxidable 50 mm 110 mm 44.4 mm 85,5 kN 64.5 kN 1.81 kg
S5311 Double Row Abrir Acero inoxidable 55 mm 120 mm 49.2 mm 106 kN 82 kN 2.32 kg
S5312 Double Row Abrir Acero inoxidable 60 mm 130 mm 54 mm 122 kN 95.5 kN 3.05 kg
S5313 Double Row Abrir Acero inoxidable 65 mm 140 mm 58.7 mm 138 kN 109 kN 3.96 kg
S5314 Double Row Abrir Acero inoxidable 70 mm 150 mm 63,5 mm 155 kN 125 kN 4.74 kg
S5315 Double Row Abrir Acero inoxidable 75 mm 160 mm 68.3 mm 168 kN 141 kN 5.65 kg
S7000 Fila única Abrir Stainless steel 10 mm 26 mm 8 mm 4.65 kN 2.07 kN 0.023 kg
S7000DB Single Row Series Duples Arrangement Abrir Stainless steel 10 mm 26 mm 16 mm 7.50 kN 4.15 kN 0.046 kg
S7000DF Single Row Series Duples Arrangement Abrir Stainless steel 10 mm 26 mm 16 mm 7.50 kN 4.15 kN 0.046 kg
S7000DT Single Row Series Duples Arrangement Abrir Stainless steel 10 mm 26 mm 16 mm 7.50 kN 4.15 kN 0.046 kg
S7001 Fila única Abrir Stainless steel 12 mm 28 mm 8 mm 5.05 kN 2.46 kN 0.025 kg
S7001DB Single Row Series Duples Arrangement Abrir Stainless steel 12 mm 28 mm 16 mm 8.20 kN 4.90 kN 0.05 kg
S7001DF Single Row Series Duples Arrangement Abrir Stainless steel 12 mm 28 mm 16 mm 8.20 kN 4.90 kN 0.05 kg
S7001DT Single Row Series Duples Arrangement Abrir Stainless steel 12 mm 28 mm 16 mm 8.20 kN 4.90 kN 0.05 kg
S7002 Fila única Abrir Stainless steel 15 mm 32 mm 9 mm 5.80 kN 3.15 kN 0.035 kg
S7002DB Single Row Series Duples Arrangement Abrir Stainless steel 15 mm 32 mm 18 mm 9.40 kN 6.30 kN 0.07 kg
S7002DF Single Row Series Duples Arrangement Abrir Stainless steel 15 mm 32 mm 18 mm 9.40 kN 6.30 kN 0.07 kg
S7002DT Single Row Series Duples Arrangement Abrir Stainless steel 15 mm 32 mm 18 mm 9.40 kN 6.30 kN 0.07 kg
S7003 Fila única Abrir Stainless steel 17 mm 35 mm 10 mm 7.15 kN 3.85 kN 0.046 kg
S7003DB Single Row Series Duples Arrangement Abrir Stainless steel 17 mm 35 mm 20 mm 11.6 kN 7.65 kN 0.092 kg
S7003DF Single Row Series Duples Arrangement Abrir Stainless steel 17 mm 35 mm 20 mm 11.6 kN 7.65 kN 0.092 kg
S7003DT Single Row Series Duples Arrangement Abrir Stainless steel 17 mm 35 mm 20 mm 11.6 kN 7.65 kN 0.092 kg
S7004 Fila única Abrir Stainless steel 20 mm 42 mm 12 mm 9.70 kN 5.60 kN 0,08 kg
S7004DB Single Row Series Duples Arrangement Abrir Stainless steel 20 mm 42 mm 24 mm 15.8 kN 11.2 kN 0,16 kg
S7004DF Single Row Series Duples Arrangement Abrir Stainless steel 20 mm 42 mm 24 mm 15.8 kN 11.2 kN 0,16 kg
S7004DT Single Row Series Duples Arrangement Abrir Stainless steel 20 mm 42 mm 24 mm 15.8 kN 11.2 kN 0,16 kg
S7005 Fila única Abrir Stainless steel 25 mm 47 mm 12 mm 10.7 kN 6.85 kN 0.093 kg
S7005DB Single Row Series Duples Arrangement Abrir Stainless steel 25 mm 47 mm 24 mm 17.5 kN 13.7 kN 0.186 kg
S7005DF Single Row Series Duples Arrangement Abrir Stainless steel 25 mm 47 mm 24 mm 17.5 kN 13.7 kN 0.186 kg
S7005DT Single Row Series Duples Arrangement Abrir Stainless steel 25 mm 47 mm 24 mm 17.5 kN 13.7 kN 0.186 kg
S7006 Fila única Abrir Stainless steel 30 mm 55 mm 13 mm 13.9 kN 9.45 kN 0.135 kg
S7006DB Single Row Series Duples Arrangement Abrir Stainless steel 30 mm 55 mm 26 mm 22.5 kN 18.9 kN 0.27 kg
S7006DF Single Row Series Duples Arrangement Abrir Stainless steel 30 mm 55 mm 26 mm 22.5 kN 18.9 kN 0.27 kg
S7006DT Single Row Series Duples Arrangement Abrir Stainless steel 30 mm 55 mm 26 mm 22.5 kN 18.9 kN 0.27 kg
S7007 Fila única Abrir Stainless steel 35 mm 62 mm 14 mm 17.5 kN 12.6 kN 0.18 kg
S7007DB Single Row Series Duples Arrangement Abrir Stainless steel 35 mm 62 mm 28 mm 28.5 kN 25.1 kN 0.36 kg
S7007DF Single Row Series Duples Arrangement Abrir Stainless steel 35 mm 62 mm 28 mm 28.5 kN 25.1 kN 0.36 kg
S7007DT Single Row Series Duples Arrangement Abrir Stainless steel 35 mm 62 mm 28 mm 28.5 kN 25.1 kN 0.36 kg
S7008 Fila única Abrir Stainless steel 40 mm 68 mm 15 mm 18.8 kN 14.6 kN 0.222 kg
S7008DB Single Row Series Duples Arrangement Abrir Stainless steel 40 mm 68 mm 30 mm 30.5 kN 29.2 kN 0.444 kg
S7008DF Single Row Series Duples Arrangement Abrir Stainless steel 40 mm 68 mm 30 mm 30.5 kN 29.2 kN 0.444 kg
S7008DT Single Row Series Duples Arrangement Abrir Stainless steel 40 mm 68 mm 30 mm 30.5 kN 29.2 kN 0.444 kg
S7009 Fila única Abrir Stainless steel 45 mm 75 mm 16 mm 22.3 kN 17.7 kN 0.282 kg
S7009DB Single Row Series Duples Arrangement Abrir Stainless steel 45 mm 75 mm 32 mm 36.0 kN 35.5 kN 0.564 kg
S7009DF Single Row Series Duples Arrangement Abrir Stainless steel 45 mm 75 mm 32 mm 36.0 kN 35.5 kN 0.564 kg
S7009DT Single Row Series Duples Arrangement Abrir Stainless steel 45 mm 75 mm 32 mm 36.0 kN 35.5 kN 0.564 kg
S7010 Fila única Abrir Stainless steel 50 mm 80 mm 16 mm 23.7 kN 20.1 kN 0.306 kg
S7010DB Single Row Series Duples Arrangement Abrir Stainless steel 50 mm 80 mm 32 mm 38.5 kN 40.0 kN 0.612 kg
S7010DF Single Row Series Duples Arrangement Abrir Stainless steel 50 mm 80 mm 32 mm 38.5 kN 40.0 kN 0.612 kg
S7010DT Single Row Series Duples Arrangement Abrir Stainless steel 50 mm 80 mm 32 mm 38.5 kN 40.0 kN 0.612 kg
S7011 Fila única Abrir Stainless steel 55 mm 90 mm 18 mm 31.0 kN 26,3 kN 0.447 kg
S7011DB Single Row Series Duples Arrangement Abrir Stainless steel 55 mm 90 mm 36 mm 50.5 kN 52,5 kN 0.894 kg
S7011DF Single Row Series Duples Arrangement Abrir Stainless steel 55 mm 90 mm 36 mm 50.5 kN 52,5 kN 0.894 kg
S7011DT Single Row Series Duples Arrangement Abrir Stainless steel 55 mm 90 mm 36 mm 50.5 kN 52,5 kN 0.894 kg
S7012 Fila única Abrir Stainless steel 60 mm 95 mm 18 mm 32.0 kN 28.1 kN 0.478 kg
S7012DB Single Row Series Duples Arrangement Abrir Stainless steel 60 mm 95 mm 36 mm 52.0 kN 56.0 kN 0.956 kg
S7012DF Single Row Series Duples Arrangement Abrir Stainless steel 60 mm 95 mm 36 mm 52.0 kN 56.0 kN 0.956 kg
S7012DT Single Row Series Duples Arrangement Abrir Stainless steel 60 mm 95 mm 36 mm 52.0 kN 56.0 kN 0.956 kg
S7013 Fila única Abrir Stainless steel 65 mm 100 mm 18 mm 33,5 kN 31,5 kN 0.509 kg
S7013DB Single Row Series Duples Arrangement Abrir Stainless steel 65 mm 100 mm 36 mm 55.0 kN 62.5 kN 1.018 kg
S7013DF Single Row Series Duples Arrangement Abrir Stainless steel 65 mm 100 mm 36 mm 55.0 kN 62.5 kN 1.018 kg
S7013DT Single Row Series Duples Arrangement Abrir Stainless steel 65 mm 100 mm 36 mm 55.0 kN 62.5 kN 1.018 kg
S7014 Fila única Abrir Stainless steel 70 mm 110 mm 20 mm 42.5 kN 39,5 kN 0.705 kg
S7014DB Single Row Series Duples Arrangement Abrir Stainless steel 70 mm 110 mm 40 mm 69.5 kN 78,5 kN 1,41 kg
S7014DF Single Row Series Duples Arrangement Abrir Stainless steel 70 mm 110 mm 40 mm 69.5 kN 78,5 kN 1,41 kg
S7014DT Single Row Series Duples Arrangement Abrir Stainless steel 70 mm 110 mm 40 mm 69.5 kN 78,5 kN 1,41 kg
S7015 Fila única Abrir Stainless steel 75 mm 115 mm 20 mm 43.50 kN 41.5 kN 0.745 kg
S7015DB Single Row Series Duples Arrangement Abrir Stainless steel 75 mm 115 mm 40 mm 71.0 kN 83.5 kN 1.49 kg
S7015DF Single Row Series Duples Arrangement Abrir Stainless steel 75 mm 115 mm 40 mm 71.0 kN 83.5 kN 1.49 kg
S7015DT Single Row Series Duples Arrangement Abrir Stainless steel 75 mm 115 mm 40 mm 71.0 kN 83.5 kN 1.49 kg
S7016 Fila única Abrir Stainless steel 80 mm 125 mm 22 mm 53.5 kN 50.5 kN 0.994 kg
S7016DB Single Row Series Duples Arrangement Abrir Stainless steel 80 mm 125 mm 44 mm 86.5 kN 101 kN 1.988 kg
S7016DF Single Row Series Duples Arrangement Abrir Stainless steel 80 mm 125 mm 44 mm 86.5 kN 101 kN 1.988 kg
S7016DT Single Row Series Duples Arrangement Abrir Stainless steel 80 mm 125 mm 44 mm 86.5 kN 101 kN 1.988 kg
S7017 Fila única Abrir Stainless steel 85 mm 130 mm 22 mm 54.5 kN 53.5 kN 1.04 kg
S7017DB Single Row Series Duples Arrangement Abrir Stainless steel 85 mm 130 mm 44 mm 89.0 kN 107 kN 2.08 kg
S7017DF Single Row Series Duples Arrangement Abrir Stainless steel 85 mm 130 mm 44 mm 89.0 kN 107 kN 2.08 kg
S7017DT Single Row Series Duples Arrangement Abrir Stainless steel 85 mm 130 mm 44 mm 89.0 kN 107 kN 2.08 kg
S7018 Fila única Abrir Stainless steel 90 mm 140 mm 24 mm 65.0 kN 63.5 kN 1,35 kg
S7018DB Single Row Series Duples Arrangement Abrir Stainless steel 90 mm 140 mm 48 mm 106 kN 127 kN 2.7 kg
S7018DF Single Row Series Duples Arrangement Abrir Stainless steel 90 mm 140 mm 48 mm 106 kN 127 kN 2.7 kg
S7018DT Single Row Series Duples Arrangement Abrir Stainless steel 90 mm 140 mm 48 mm 106 kN 127 kN 2.7 kg
S7019 Fila única Abrir Stainless steel 95 mm 145 mm 24 mm 67.0 kN 67.0 kN 1,41 kg
S7019DB Single Row Series Duples Arrangement Abrir Stainless steel 95 mm 145 mm 48 mm 109 kN 134 kN 2.82 kg
S7019DF Single Row Series Duples Arrangement Abrir Stainless steel 95 mm 145 mm 48 mm 109 kN 134 kN 2.82 kg
S7019DT Single Row Series Duples Arrangement Abrir Stainless steel 95 mm 145 mm 48 mm 109 kN 134 kN 2.82 kg
S7020 Fila única Abrir Stainless steel 100 mm 150 mm 24 mm 68.5 kN 70.5 kN 1.47 kg
S7020DB Single Row Series Duples Arrangement Abrir Stainless steel 100 mm 150 mm 48 mm 111 kN 141 kN 2.94 kg
S7020DF Single Row Series Duples Arrangement Abrir Stainless steel 100 mm 150 mm 48 mm 111 kN 141 kN 2.94 kg
S7020DT Single Row Series Duples Arrangement Abrir Stainless steel 100 mm 150 mm 48 mm 111 kN 141 kN 2.94 kg
S7021 Fila única Abrir Stainless steel 105 mm 160 mm 26 mm 80.0 kN 81.5 kN 1.86 kg
S7021DB Single Row Series Duples Arrangement Abrir Stainless steel 105 mm 160 mm 52 mm 130 kN 163 kN 3.72 kg
S7021DF Single Row Series Duples Arrangement Abrir Stainless steel 105 mm 160 mm 52 mm 130 kN 163 kN 3.72 kg
S7021DT Single Row Series Duples Arrangement Abrir Stainless steel 105 mm 160 mm 52 mm 130 kN 163 kN 3.72 kg
S7022 Fila única Abrir Stainless steel 110 mm 170 mm 28 mm 92.0 kN 93.0 kN 2.3 kg
S7022DB Single Row Series Duples Arrangement Abrir Stainless steel 110 mm 170 mm 56 mm 149 kN 186 kN 4.6 kg
S7022DF Single Row Series Duples Arrangement Abrir Stainless steel 110 mm 170 mm 56 mm 149 kN 186 kN 4.6 kg
S7022DT Single Row Series Duples Arrangement Abrir Stainless steel 110 mm 170 mm 56 mm 149 kN 186 kN 4.6 kg
S7024 Fila única Abrir Stainless steel 120 mm 180 mm 28 mm 93,5 kN 98.5 kN 2.47 kg
S7024DB Single Row Series Duples Arrangement Abrir Stainless steel 120 mm 180 mm 56 mm 152 kN 197 kN 4.94 kg
S7024DF Single Row Series Duples Arrangement Abrir Stainless steel 120 mm 180 mm 56 mm 152 kN 197 kN 4.94 kg
S7024DT Single Row Series Duples Arrangement Abrir Stainless steel 120 mm 180 mm 56 mm 152 kN 197 kN 4.94 kg
S7026 Fila única Abrir Stainless steel 130 mm 200 mm 33 mm 117 kN 125 kN 3.73 kg
S7026DB Single Row Series Duples Arrangement Abrir Stainless steel 130 mm 200 mm 66 mm 191 kN 251 kN 7.46 kg
S7026DF Single Row Series Duples Arrangement Abrir Stainless steel 130 mm 200 mm 66 mm 191 kN 251 kN 7.46 kg
S7026DT Single Row Series Duples Arrangement Abrir Stainless steel 130 mm 200 mm 66 mm 191 kN 251 kN 7.46 kg
S7028 Fila única Abrir Stainless steel 140 mm 210 mm 33 mm 120 kN 133 kN 3.96 kg
S7028DB Single Row Series Duples Arrangement Abrir Stainless steel 140 mm 210 mm 66 mm 194 kN 265 kN 7.92 kg
S7028DF Single Row Series Duples Arrangement Abrir Stainless steel 140 mm 210 mm 66 mm 194 kN 265 kN 7.92 kg
S7028DT Single Row Series Duples Arrangement Abrir Stainless steel 140 mm 210 mm 66 mm 194 kN 265 kN 7.92 kg
S7030 Fila única Abrir Stainless steel 150 mm 225 mm 35 mm 137 kN 154 kN 4.82 kg
S7030DB Single Row Series Duples Arrangement Abrir Stainless steel 150 mm 225 mm 70 mm 222 kN 305 kN 9.64 kg
S7030DF Single Row Series Duples Arrangement Abrir Stainless steel 150 mm 225 mm 70 mm 222 kN 305 kN 9.64 kg
S7030DT Single Row Series Duples Arrangement Abrir Stainless steel 150 mm 225 mm 70 mm 222 kN 305 kN 9.64 kg
S7032 Fila única Abrir Stainless steel 160 mm 240 mm 38 mm 155 kN 176 kN 5.96 kg
S7032DB Single Row Series Duples Arrangement Abrir Stainless steel 160 mm 240 mm 76 mm 252 kN 355 kN 11.92 kg
S7032DF Single Row Series Duples Arrangement Abrir Stainless steel 160 mm 240 mm 76 mm 252 kN 355 kN 11.92 kg
S7032DT Single Row Series Duples Arrangement Abrir Stainless steel 160 mm 240 mm 76 mm 252 kN 355 kN 11.92 kg
S7034 Fila única Abrir Stainless steel 170 mm 260 mm 42 mm 186 kN 214 kN 7.96 kg
S7034DB Single Row Series Duples Arrangement Abrir Stainless steel 170 mm 260 mm 84 mm 300 kN 430 kN 15.92 kg
S7034DF Single Row Series Duples Arrangement Abrir Stainless steel 170 mm 260 mm 84 mm 300 kN 430 kN 15.92 kg
S7034DT Single Row Series Duples Arrangement Abrir Stainless steel 170 mm 260 mm 84 mm 300 kN 430 kN 15.92 kg
S7036 Fila única Abrir Stainless steel 180 mm 280 mm 46 mm 219 kN 266 kN 10.4 kg
S7036DB Single Row Series Duples Arrangement Abrir Stainless steel 180 mm 280 mm 92 mm 355 kN 530 kN 20.8 kg
S7036DF Single Row Series Duples Arrangement Abrir Stainless steel 180 mm 280 mm 92 mm 355 kN 530 kN 20.8 kg
S7036DT Single Row Series Duples Arrangement Abrir Stainless steel 180 mm 280 mm 92 mm 355 kN 530 kN 20.8 kg
S7038 Fila única Abrir Stainless steel 190 mm 290 mm 46 mm 224 kN 280 kN 10.8 kg
S7038DB Single Row Series Duples Arrangement Abrir Stainless steel 190 mm 290 mm 92 mm 365 kN 560 kN 21.6 kg
S7038DF Single Row Series Duples Arrangement Abrir Stainless steel 190 mm 290 mm 92 mm 365 kN 560 kN 21.6 kg
S7038DT Single Row Series Duples Arrangement Abrir Stainless steel 190 mm 290 mm 92 mm 365 kN 560 kN 21.6 kg
S7040 Fila única Abrir Stainless steel 200 mm 310 mm 51 mm 252 kN 325 kN 14 kg
S7040DB Single Row Series Duples Arrangement Abrir Stainless steel 200 mm 310 mm 102 mm 410 kN 650 kN 28 kg
S7040DF Single Row Series Duples Arrangement Abrir Stainless steel 200 mm 310 mm 102 mm 410 kN 650 kN 28 kg
S7040DT Single Row Series Duples Arrangement Abrir Stainless steel 200 mm 310 mm 102 mm 410 kN 650 kN 28 kg
S7200B Fila única Abrir Stainless steel 10 mm 30 mm 9 mm 6350 kN 2720 kN 30g kg
S7200B-2RS Fila única Sealed Stainless steel 10 mm 30 mm 9 mm 6350 kN 2720 kN 30g kg
S7200BDB Single Row Series Duples Arrangement Abrir Stainless steel 10 mm 30 mm 18 mm 8.10 kN 5.05 kN 0.058 kg
S7200BDF Single Row Series Duples Arrangement Abrir Stainless steel 10 mm 30 mm 18 mm 8.10 kN 5.05 kN 0.058 kg
S7200BDT Single Row Series Duples Arrangement Abrir Stainless steel 10 mm 30 mm 18 mm 8.10 kN 5.05 kN 0.058 kg
S7200DB Single Row Series Duples Arrangement Abrir Stainless steel 10 mm 30 mm 18 mm 8.80 kN 5.45 kN 0.058 kg
S7200DF Single Row Series Duples Arrangement Abrir Stainless steel 10 mm 30 mm 18 mm 8.80 kN 5.45 kN 0.058 kg
S7200DT Single Row Series Duples Arrangement Abrir Stainless steel 10 mm 30 mm 18 mm 8.80 kN 5.45 kN 0.058 kg
S7201B Fila única Abrir Stainless steel 12 mm 32 mm 10 mm 8050 kN 3740 kN 30g kg
S7201B-2RS Fila única Sealed Stainless steel 12 mm 32 mm 10 mm 8050 kN 3740 kN 30g kg
S7201BDB Single Row Series Duples Arrangement Abrir Stainless steel 12 mm 32 mm 20 mm 11.4 kN 7.35 kN 0.072 kg
S7201BDF Single Row Series Duples Arrangement Abrir Stainless steel 12 mm 32 mm 20 mm 11.4 kN 7.35 kN 0.072 kg
S7201BDT Single Row Series Duples Arrangement Abrir Stainless steel 12 mm 32 mm 20 mm 11.4 kN 7.35 kN 0.072 kg
S7201DB Single Row Series Duples Arrangement Abrir Stainless steel 12 mm 32 mm 20 mm 12.3 kN 7.95 kN 0.07 kg
S7201DF Single Row Series Duples Arrangement Abrir Stainless steel 12 mm 32 mm 20 mm 12.3 kN 7.95 kN 0.07 kg
S7201DT Single Row Series Duples Arrangement Abrir Stainless steel 12 mm 32 mm 20 mm 12.3 kN 7.95 kN 0.07 kg
S7202B Fila única Abrir Stainless steel 15 mm 35 mm 11 mm 8700 kN 4360 kN 40g kg
S7202B-2RS Fila única Sealed Stainless steel 15 mm 35 mm 11 mm 8700 kN 4360 kN 40g kg
S7202BDB Single Row Series Duples Arrangement Abrir Stainless steel 15 mm 35 mm 22 mm 13.6 kN 8.70 kN 0.092 kg
S7202BDF Single Row Series Duples Arrangement Abrir Stainless steel 15 mm 35 mm 22 mm 13.6 kN 8.70 kN 0.092 kg
S7202BDT Single Row Series Duples Arrangement Abrir Stainless steel 15 mm 35 mm 22 mm 13.6 kN 8.70 kN 0.092 kg
S7202DB Single Row Series Duples Arrangement Abrir Stainless steel 15 mm 35 mm 22 mm 14.7 kN 9.40 kN 0.092 kg
S7202DF Single Row Series Duples Arrangement Abrir Stainless steel 15 mm 35 mm 22 mm 14.7 kN 9.40 kN 0.092 kg
S7202DT Single Row Series Duples Arrangement Abrir Stainless steel 15 mm 35 mm 22 mm 14.7 kN 9.40 kN 0.092 kg
S7203B Fila única Abrir Stainless steel 17 mm 40 mm 12 mm 10700 kN 5550 kN 60g kg
S7203B-2RS Fila única Sealed Stainless steel 17 mm 40 mm 12 mm 10700 kN 5550 kN 60g kg
S7203BDB Single Row Series Duples Arrangement Abrir Stainless steel 17 mm 40 mm 24 mm 17.9 kN 12.2 kN 0.132 kg
S7203BDF Single Row Series Duples Arrangement Abrir Stainless steel 17 mm 40 mm 24 mm 17.9 kN 12.2 kN 0.132 kg
S7203BDT Single Row Series Duples Arrangement Abrir Stainless steel 17 mm 40 mm 24 mm 17.9 kN 12.2 kN 0.132 kg
S7203DB Single Row Series Duples Arrangement Abrir Stainless steel 17 mm 40 mm 24 mm 19.4 kN 13.2 kN 0.128 kg
S7203DF Single Row Series Duples Arrangement Abrir Stainless steel 17 mm 40 mm 24 mm 19.4 kN 13.2 kN 0.128 kg
S7203DT Single Row Series Duples Arrangement Abrir Stainless steel 17 mm 40 mm 24 mm 19.4 kN 13.2 kN 0.128 kg
S7204B Fila única Abrir Stainless steel 20 mm 47 mm 14 mm 15400 kN 8200 kN 100g kg
S7204B-2RS Fila única Sealed Stainless steel 20 mm 47 mm 14 mm 15400 kN 8200 kN 100g kg
S7204BDB Single Row Series Duples Arrangement Abrir Stainless steel 20 mm 47 mm 28 mm 21.6 kN 15.4 kN 0.204 kg
S7204BDF Single Row Series Duples Arrangement Abrir Stainless steel 20 mm 47 mm 28 mm 21.6 kN 15.4 kN 0.204 kg
S7204BDT Single Row Series Duples Arrangement Abrir Stainless steel 20 mm 47 mm 28 mm 21.6 kN 15.4 kN 0.204 kg
S7204DB Single Row Series Duples Arrangement Abrir Stainless steel 20 mm 47 mm 28 mm 23.6 kN 16.8 kN 0.2 kg
S7204DF Single Row Series Duples Arrangement Abrir Stainless steel 20 mm 47 mm 28 mm 23.6 kN 16.8 kN 0.2 kg
S7204DT Single Row Series Duples Arrangement Abrir Stainless steel 20 mm 47 mm 28 mm 23.6 kN 16.8 kN 0.2 kg
S7205B Fila única Abrir Stainless steel 25 mm 52 mm 15 mm 16400 kN 9350 kN 120g kg
S7205B-2RS Fila única Sealed Stainless steel 25 mm 52 mm 15 mm 16400 kN 9350 kN 120g kg
S7205BDB Single Row Series Duples Arrangement Abrir Stainless steel 25 mm 52 mm 30 mm 24.0 kN 18.8 kN 0.258 kg
S7205BDF Single Row Series Duples Arrangement Abrir Stainless steel 25 mm 52 mm 30 mm 24.0 kN 18.8 kN 0.258 kg
S7205BDT Single Row Series Duples Arrangement Abrir Stainless steel 25 mm 52 mm 30 mm 24.0 kN 18.8 kN 0.258 kg
S7205DB Single Row Series Duples Arrangement Abrir Stainless steel 25 mm 52 mm 30 mm 26,3 kN 20.6 kN 0.25 kg
S7205DF Single Row Series Duples Arrangement Abrir Stainless steel 25 mm 52 mm 30 mm 26,3 kN 20.6 kN 0.25 kg
S7205DT Single Row Series Duples Arrangement Abrir Stainless steel 25 mm 52 mm 30 mm 26,3 kN 20.6 kN 0.25 kg
S7206B Fila única Abrir Stainless steel 30 mm 62 mm 16 mm 23400 kN 14300 kN 190g kg
S7206B-2RS Fila única Sealed Stainless steel 30 mm 62 mm 16 mm 23400 kN 14300 kN 190g kg
S7206BDB Single Row Series Duples Arrangement Abrir Stainless steel 30 mm 62 mm 32 mm 33,5 kN 27.1 kN 0.394 kg
S7206BDF Single Row Series Duples Arrangement Abrir Stainless steel 30 mm 62 mm 32 mm 33,5 kN 27.1 kN 0.394 kg
S7206BDT Single Row Series Duples Arrangement Abrir Stainless steel 30 mm 62 mm 32 mm 33,5 kN 27.1 kN 0.394 kg
S7206DB Single Row Series Duples Arrangement Abrir Stainless steel 30 mm 62 mm 32 mm 36.5 kN 29.6 kN 0.386 kg
S7206DF Single Row Series Duples Arrangement Abrir Stainless steel 30 mm 62 mm 32 mm 36.5 kN 29.6 kN 0.386 kg
S7206DT Single Row Series Duples Arrangement Abrir Stainless steel 30 mm 62 mm 32 mm 36.5 kN 29.6 kN 0.386 kg
S7207B Fila única Abrir Stainless steel 35 mm 72 mm 17 mm 30300 kN 19100 kN 260g kg
S7207B-2RS Fila única Sealed Stainless steel 35 mm 72 mm 17 mm 30300 kN 19100 kN 260g kg
S7207BDB Single Row Series Duples Arrangement Abrir Stainless steel 35 mm 72 mm 34 mm 44.0 kN 36.5 kN 0.574 kg
S7207BDF Single Row Series Duples Arrangement Abrir Stainless steel 35 mm 72 mm 34 mm 44.0 kN 36.5 kN 0.574 kg
S7207BDT Single Row Series Duples Arrangement Abrir Stainless steel 35 mm 72 mm 34 mm 44.0 kN 36.5 kN 0.574 kg
S7207DB Single Row Series Duples Arrangement Abrir Stainless steel 35 mm 72 mm 34 mm 48.5 kN 40.0 kN 0.562 kg
S7207DF Single Row Series Duples Arrangement Abrir Stainless steel 35 mm 72 mm 34 mm 48.5 kN 40.0 kN 0.562 kg
S7207DT Single Row Series Duples Arrangement Abrir Stainless steel 35 mm 72 mm 34 mm 48.5 kN 40.0 kN 0.562 kg
S7208B Fila única Abrir Stainless steel 40 mm 80 mm 18 mm 35500 kN 23000 kN 350g kg
S7208B-2RS Fila única Sealed Stainless steel 40 mm 80 mm 18 mm 35500 kN 23000 kN 350g kg
S7208BDB Single Row Series Duples Arrangement Abrir Stainless steel 40 mm 80 mm 36 mm 52.0 kN 46.0 kN 0.75 kg
S7208BDF Single Row Series Duples Arrangement Abrir Stainless steel 40 mm 80 mm 36 mm 52.0 kN 46.0 kN 0.75 kg
S7208BDT Single Row Series Duples Arrangement Abrir Stainless steel 40 mm 80 mm 36 mm 52.0 kN 46.0 kN 0.75 kg
S7208DB Single Row Series Duples Arrangement Abrir Stainless steel 40 mm 80 mm 36 mm 57.5 kN 50.5 kN 0.71 kg
S7208DF Single Row Series Duples Arrangement Abrir Stainless steel 40 mm 80 mm 36 mm 57.5 kN 50.5 kN 0.71 kg
S7208DT Single Row Series Duples Arrangement Abrir Stainless steel 40 mm 80 mm 36 mm 57.5 kN 50.5 kN 0.71 kg
S7209B Fila única Abrir Stainless steel 45 mm 85 mm 19 mm 37200 kN 25400 kN 400g kg
S7209B-2RS Fila única Sealed Stainless steel 45 mm 85 mm 19 mm 37200 kN 25400 kN 400g kg
S7209BDB Single Row Series Duples Arrangement Abrir Stainless steel 45 mm 85 mm 38 mm 58.5 kN 52,5 kN 0.82 kg
S7209BDF Single Row Series Duples Arrangement Abrir Stainless steel 45 mm 85 mm 38 mm 58.5 kN 52,5 kN 0.82 kg
S7209BDT Single Row Series Duples Arrangement Abrir Stainless steel 45 mm 85 mm 38 mm 58.5 kN 52,5 kN 0.82 kg
S7209DB Single Row Series Duples Arrangement Abrir Stainless steel 45 mm 85 mm 38 mm 64.5 kN 57.5 kN 0.808 kg
S7209DF Single Row Series Duples Arrangement Abrir Stainless steel 45 mm 85 mm 38 mm 64.5 kN 57.5 kN 0.808 kg
S7209DT Single Row Series Duples Arrangement Abrir Stainless steel 45 mm 85 mm 38 mm 64.5 kN 57.5 kN 0.808 kg
S7210B Fila única Abrir Stainless steel 50 mm 90 mm 20 mm 38800 kN 27800 kN 440g kg
S7210B-2RS Fila única Sealed Stainless steel 50 mm 90 mm 20 mm 38800 kN 27800 kN 440g kg
S7210BDB Single Row Series Duples Arrangement Abrir Stainless steel 50 mm 90 mm 40 mm 60.5 kN 57.0 kN 0.932 kg
S7210BDF Single Row Series Duples Arrangement Abrir Stainless steel 50 mm 90 mm 40 mm 60.5 kN 57.0 kN 0.932 kg
S7210BDT Single Row Series Duples Arrangement Abrir Stainless steel 50 mm 90 mm 40 mm 60.5 kN 57.0 kN 0.932 kg
S7210DB Single Row Series Duples Arrangement Abrir Stainless steel 50 mm 90 mm 40 mm 67.0 kN 63.0 kN 0.914 kg
S7210DF Single Row Series Duples Arrangement Abrir Stainless steel 50 mm 90 mm 40 mm 67.0 kN 63.0 kN 0.914 kg
S7210DT Single Row Series Duples Arrangement Abrir Stainless steel 50 mm 90 mm 40 mm 67.0 kN 63.0 kN 0.914 kg
S7211BDB Single Row Series Duples Arrangement Abrir Stainless steel 55 mm 100 mm 42 mm 75.0 kN 72.0 kN 1.224 kg
S7211BDF Single Row Series Duples Arrangement Abrir Stainless steel 55 mm 100 mm 42 mm 75.0 kN 72.0 kN 1.224 kg
S7211BDT Single Row Series Duples Arrangement Abrir Stainless steel 55 mm 100 mm 42 mm 75.0 kN 72.0 kN 1.224 kg
S7211DB Single Row Series Duples Arrangement Abrir Stainless steel 55 mm 100 mm 42 mm 83.0 kN 79.0 kN 1.2 kg
S7211DF Single Row Series Duples Arrangement Abrir Stainless steel 55 mm 100 mm 42 mm 83.0 kN 79.0 kN 1.2 kg
S7211DT Single Row Series Duples Arrangement Abrir Stainless steel 55 mm 100 mm 42 mm 83.0 kN 79.0 kN 1.2 kg
S7212BDB Single Row Series Duples Arrangement Abrir Stainless steel 60 mm 110 mm 44 mm 91.0 kN 89.0 kN 1.56 kg
S7212BDF Single Row Series Duples Arrangement Abrir Stainless steel 60 mm 110 mm 44 mm 91.0 kN 89.0 kN 1.56 kg
S7212BDT Single Row Series Duples Arrangement Abrir Stainless steel 60 mm 110 mm 44 mm 91.0 kN 89.0 kN 1.56 kg
S7212DB Single Row Series Duples Arrangement Abrir Stainless steel 60 mm 110 mm 44 mm 100 kN 98.0 kN 1.53 kg
S7212DF Single Row Series Duples Arrangement Abrir Stainless steel 60 mm 110 mm 44 mm 100 kN 98.0 kN 1.53 kg
S7212DT Single Row Series Duples Arrangement Abrir Stainless steel 60 mm 110 mm 44 mm 100 kN 98.0 kN 1.53 kg
S7213BDB Single Row Series Duples Arrangement Abrir Stainless steel 65 mm 120 mm 46 mm 103 kN 105 kN 1.962 kg
S7213BDF Single Row Series Duples Arrangement Abrir Stainless steel 65 mm 120 mm 46 mm 103 kN 105 kN 1.962 kg
S7213BDT Single Row Series Duples Arrangement Abrir Stainless steel 65 mm 120 mm 46 mm 103 kN 105 kN 1.962 kg
S7213DB Single Row Series Duples Arrangement Abrir Stainless steel 65 mm 120 mm 46 mm 114 kN 116 kN 1.924 kg
S7213DF Single Row Series Duples Arrangement Abrir Stainless steel 65 mm 120 mm 46 mm 114 kN 116 kN 1.924 kg
S7213DT Single Row Series Duples Arrangement Abrir Stainless steel 65 mm 120 mm 46 mm 114 kN 116 kN 1.924 kg
S7214BDB Single Row Series Duples Arrangement Abrir Stainless steel 70 mm 125 mm 48 mm 112 kN 116 kN 2.22 kg
S7214BDF Single Row Series Duples Arrangement Abrir Stainless steel 70 mm 125 mm 48 mm 112 kN 116 kN 2.22 kg
S7214BDT Single Row Series Duples Arrangement Abrir Stainless steel 70 mm 125 mm 48 mm 112 kN 116 kN 2.22 kg
S7214DB Single Row Series Duples Arrangement Abrir Stainless steel 70 mm 125 mm 48 mm 124 kN 127 kN 2.18 kg
S7214DF Single Row Series Duples Arrangement Abrir Stainless steel 70 mm 125 mm 48 mm 124 kN 127 kN 2.18 kg
S7214DT Single Row Series Duples Arrangement Abrir Stainless steel 70 mm 125 mm 48 mm 124 kN 127 kN 2.18 kg
S7215BDB Single Row Series Duples Arrangement Abrir Stainless steel 75 mm 130 mm 50 mm 116 kN 124 kN 2.38 kg
S7215BDF Single Row Series Duples Arrangement Abrir Stainless steel 75 mm 130 mm 50 mm 116 kN 124 kN 2.38 kg
S7215BDT Single Row Series Duples Arrangement Abrir Stainless steel 75 mm 130 mm 50 mm 116 kN 124 kN 2.38 kg
S7215DB Single Row Series Duples Arrangement Abrir Stainless steel 75 mm 130 mm 50 mm 128 kN 137 kN 2.34 kg
S7215DF Single Row Series Duples Arrangement Abrir Stainless steel 75 mm 130 mm 50 mm 128 kN 137 kN 2.34 kg
S7215DT Single Row Series Duples Arrangement Abrir Stainless steel 75 mm 130 mm 50 mm 128 kN 137 kN 2.34 kg
S7216BDB Single Row Series Duples Arrangement Abrir Stainless steel 80 mm 140 mm 52 mm 131 kN 139 kN 2.84 kg
S7216BDF Single Row Series Duples Arrangement Abrir Stainless steel 80 mm 140 mm 52 mm 131 kN 139 kN 2.84 kg
S7216BDT Single Row Series Duples Arrangement Abrir Stainless steel 80 mm 140 mm 52 mm 131 kN 139 kN 2.84 kg
S7216DB Single Row Series Duples Arrangement Abrir Stainless steel 80 mm 140 mm 52 mm 145 kN 152 kN 2.78 kg
S7216DF Single Row Series Duples Arrangement Abrir Stainless steel 80 mm 140 mm 52 mm 145 kN 152 kN 2.78 kg
S7216DT Single Row Series Duples Arrangement Abrir Stainless steel 80 mm 140 mm 52 mm 145 kN 152 kN 2.78 kg
S7217BDB Single Row Series Duples Arrangement Abrir Stainless steel 85 mm 150 mm 56 mm 146 kN 161 kN 3.64 kg
S7217BDF Single Row Series Duples Arrangement Abrir Stainless steel 85 mm 150 mm 56 mm 146 kN 161 kN 3.64 kg
S7217BDT Single Row Series Duples Arrangement Abrir Stainless steel 85 mm 150 mm 56 mm 146 kN 161 kN 3.64 kg
S7217DB Single Row Series Duples Arrangement Abrir Stainless steel 85 mm 150 mm 56 mm 162 kN 177 kN 3.56 kg
S7217DF Single Row Series Duples Arrangement Abrir Stainless steel 85 mm 150 mm 56 mm 162 kN 177 kN 3.56 kg
S7217DT Single Row Series Duples Arrangement Abrir Stainless steel 85 mm 150 mm 56 mm 162 kN 177 kN 3.56 kg
S7218BDB Single Row Series Duples Arrangement Abrir Stainless steel 90 mm 160 mm 60 mm 173 kN 188 kN 4.44 kg
S7218BDF Single Row Series Duples Arrangement Abrir Stainless steel 90 mm 160 mm 60 mm 173 kN 188 kN 4.44 kg
S7218BDT Single Row Series Duples Arrangement Abrir Stainless steel 90 mm 160 mm 60 mm 173 kN 188 kN 4.44 kg
S7218DB Single Row Series Duples Arrangement Abrir Stainless steel 90 mm 160 mm 60 mm 191 kN 206 kN 4.36 kg
S7218DF Single Row Series Duples Arrangement Abrir Stainless steel 90 mm 160 mm 60 mm 191 kN 206 kN 4.36 kg
S7218DT Single Row Series Duples Arrangement Abrir Stainless steel 90 mm 160 mm 60 mm 191 kN 206 kN 4.36 kg
S7219BDB Single Row Series Duples Arrangement Abrir Stainless steel 95 mm 170 mm 64 mm 196 kN 215 kN 5.44 kg
S7219BDF Single Row Series Duples Arrangement Abrir Stainless steel 95 mm 170 mm 64 mm 196 kN 215 kN 5.44 kg
S7219BDT Single Row Series Duples Arrangement Abrir Stainless steel 95 mm 170 mm 64 mm 196 kN 215 kN 5.44 kg
S7219DB Single Row Series Duples Arrangement Abrir Stainless steel 95 mm 170 mm 64 mm 217 kN 236 kN 5.34 kg
S7219DF Single Row Series Duples Arrangement Abrir Stainless steel 95 mm 170 mm 64 mm 217 kN 236 kN 5.34 kg
S7219DT Single Row Series Duples Arrangement Abrir Stainless steel 95 mm 170 mm 64 mm 217 kN 236 kN 5.34 kg
S7220BDB Single Row Series Duples Arrangement Abrir Stainless steel 100 mm 180 mm 68 mm 212 kN 229 kN 6.52 kg
S7220BDF Single Row Series Duples Arrangement Abrir Stainless steel 100 mm 180 mm 68 mm 212 kN 229 kN 6.52 kg
S7220BDT Single Row Series Duples Arrangement Abrir Stainless steel 100 mm 180 mm 68 mm 212 kN 229 kN 6.52 kg
S7220DB Single Row Series Duples Arrangement Abrir Stainless steel 100 mm 180 mm 68 mm 233 kN 251 kN 6.4 kg
S7220DF Single Row Series Duples Arrangement Abrir Stainless steel 100 mm 180 mm 68 mm 233 kN 251 kN 6.4 kg
S7220DT Single Row Series Duples Arrangement Abrir Stainless steel 100 mm 180 mm 68 mm 233 kN 251 kN 6.4 kg
S7221BDB Single Row Series Duples Arrangement Abrir Stainless steel 105 mm 190 mm 72 mm 231 kN 258 kN 7.74 kg
S7221BDF Single Row Series Duples Arrangement Abrir Stainless steel 105 mm 190 mm 72 mm 231 kN 258 kN 7.74 kg
S7221BDT Single Row Series Duples Arrangement Abrir Stainless steel 105 mm 190 mm 72 mm 231 kN 258 kN 7.74 kg
S7221DB Single Row Series Duples Arrangement Abrir Stainless steel 105 mm 190 mm 72 mm 254 kN 283 kN 7.58 kg
S7221DF Single Row Series Duples Arrangement Abrir Stainless steel 105 mm 190 mm 72 mm 254 kN 283 kN 7.58 kg
S7221DT Single Row Series Duples Arrangement Abrir Stainless steel 105 mm 190 mm 72 mm 254 kN 283 kN 7.58 kg
S7222BDB Single Row Series Duples Arrangement Abrir Stainless steel 110 mm 200 mm 76 mm 250 kN 289 kN 9.08 kg
S7222BDF Single Row Series Duples Arrangement Abrir Stainless steel 110 mm 200 mm 76 mm 250 kN 289 kN 9.08 kg
S7222BDT Single Row Series Duples Arrangement Abrir Stainless steel 110 mm 200 mm 76 mm 250 kN 289 kN 9.08 kg
S7222DB Single Row Series Duples Arrangement Abrir Stainless steel 110 mm 200 mm 76 mm 276 kN 315 kN 8.9 kg
S7222DF Single Row Series Duples Arrangement Abrir Stainless steel 110 mm 200 mm 76 mm 276 kN 315 kN 8.9 kg
S7222DT Single Row Series Duples Arrangement Abrir Stainless steel 110 mm 200 mm 76 mm 276 kN 315 kN 8.9 kg
S7224BDB Single Row Series Duples Arrangement Abrir Stainless steel 120 mm 215 mm 80 mm 269 kN 325 kN 12.52 kg
S7224BDF Single Row Series Duples Arrangement Abrir Stainless steel 120 mm 215 mm 80 mm 269 kN 325 kN 12.52 kg
S7224BDT Single Row Series Duples Arrangement Abrir Stainless steel 120 mm 215 mm 80 mm 269 kN 325 kN 12.52 kg
S7224DB Single Row Series Duples Arrangement Abrir Stainless steel 120 mm 215 mm 80 mm 297 kN 355 kN 12.52 kg
S7224DF Single Row Series Duples Arrangement Abrir Stainless steel 120 mm 215 mm 80 mm 297 kN 355 kN 12.52 kg
S7224DT Single Row Series Duples Arrangement Abrir Stainless steel 120 mm 215 mm 80 mm 297 kN 355 kN 12.52 kg
S7300B Fila única Abrir Stainless steel 10 mm 35 mm 11 mm 9150 kN 3840 kN 60g kg
S7300B-2RS Fila única Sealed Stainless steel 10 mm 35 mm 11 mm 9150 kN 3840 kN 60g kg
S7300BDB Single Row Series Duples Arrangement Abrir Stainless steel 10 mm 35 mm 22 mm 15.4 kN 9.20 kN 0.082 kg
S7300BDF Single Row Series Duples Arrangement Abrir Stainless steel 10 mm 35 mm 22 mm 15.4 kN 9.20 kN 0.082 kg
S7300BDT Single Row Series Duples Arrangement Abrir Stainless steel 10 mm 35 mm 22 mm 15.4 kN 9.20 kN 0.082 kg
S7300DB Single Row Series Duples Arrangement Abrir Stainless steel 10 mm 35 mm 22 mm 16.5 kN 9.85 kN 0,08 kg
S7300DF Single Row Series Duples Arrangement Abrir Stainless steel 10 mm 35 mm 22 mm 16.5 kN 9.85 kN 0,08 kg
S7300DT Single Row Series Duples Arrangement Abrir Stainless steel 10 mm 35 mm 22 mm 16.5 kN 9.85 kN 0,08 kg
S7301B Fila única Abrir Stainless steel 12 mm 37 mm 12 mm 10900 kN 4960 kN 60g kg
S7301B-2RS Fila única Sealed Stainless steel 12 mm 37 mm 12 mm 10900 kN 4960 kN 60g kg
S7301BDB Single Row Series Duples Arrangement Abrir Stainless steel 12 mm 37 mm 24 mm 17.1 kN 9.90 kN 0.09 kg
S7301BDF Single Row Series Duples Arrangement Abrir Stainless steel 12 mm 37 mm 24 mm 17.1 kN 9.90 kN 0.09 kg
S7301BDT Single Row Series Duples Arrangement Abrir Stainless steel 12 mm 37 mm 24 mm 17.1 kN 9.90 kN 0.09 kg
S7301DB Single Row Series Duples Arrangement Abrir Stainless steel 12 mm 37 mm 24 mm 18.2 kN 10.5 kN 0.088 kg
S7301DF Single Row Series Duples Arrangement Abrir Stainless steel 12 mm 37 mm 24 mm 18.2 kN 10.5 kN 0.088 kg
S7301DT Single Row Series Duples Arrangement Abrir Stainless steel 12 mm 37 mm 24 mm 18.2 kN 10.5 kN 0.088 kg
S7302B Fila única Abrir Stainless steel 15 mm 42 mm 13 mm 13100 kN 6100 kN 80g kg
S7302B-2RS Fila única Sealed Stainless steel 15 mm 42 mm 13 mm 13100 kN 6100 kN 80g kg
S7302BDB Single Row Series Duples Arrangement Abrir Stainless steel 15 mm 42 mm 26 mm 20,3 kN 13.3 kN 0,114 kg
S7302BDF Single Row Series Duples Arrangement Abrir Stainless steel 15 mm 42 mm 26 mm 20,3 kN 13.3 kN 0,114 kg
S7302BDT Single Row Series Duples Arrangement Abrir Stainless steel 15 mm 42 mm 26 mm 20,3 kN 13.3 kN 0,114 kg
S7302DB Single Row Series Duples Arrangement Abrir Stainless steel 15 mm 42 mm 26 mm 21.9 kN 14.4 kN 0.11 kg
S7302DF Single Row Series Duples Arrangement Abrir Stainless steel 15 mm 42 mm 26 mm 21.9 kN 14.4 kN 0.11 kg
S7302DT Single Row Series Duples Arrangement Abrir Stainless steel 15 mm 42 mm 26 mm 21.9 kN 14.4 kN 0.11 kg
S7303B Fila única Abrir Stainless steel 17 mm 47 mm 14 mm 16600 kN 8300 kN 110g kg
S7303B-2RS Fila única Sealed Stainless steel 17 mm 47 mm 14 mm 16600 kN 8300 kN 110g kg
S7303BDB Single Row Series Duples Arrangement Abrir Stainless steel 17 mm 47 mm 28 mm 24.0 kN 16.0 kN 0.218 kg
S7303BDF Single Row Series Duples Arrangement Abrir Stainless steel 17 mm 47 mm 28 mm 24.0 kN 16.0 kN 0.218 kg
S7303BDT Single Row Series Duples Arrangement Abrir Stainless steel 17 mm 47 mm 28 mm 24.0 kN 16.0 kN 0.218 kg
S7303DB Single Row Series Duples Arrangement Abrir Stainless steel 17 mm 47 mm 28 mm 25.9 kN 17.3 kN 0.214 kg
S7303DF Single Row Series Duples Arrangement Abrir Stainless steel 17 mm 47 mm 28 mm 25.9 kN 17.3 kN 0.214 kg
S7303DT Single Row Series Duples Arrangement Abrir Stainless steel 17 mm 47 mm 28 mm 25.9 kN 17.3 kN 0.214 kg
S7304B Fila única Abrir Stainless steel 20 mm 52 mm 15 mm 19300 kN 9900 kN 150g kg
S7304B-2RS Fila única Sealed Stainless steel 20 mm 52 mm 15 mm 19300 kN 9900 kN 150g kg
S7304BDB Single Row Series Duples Arrangement Abrir Stainless steel 20 mm 52 mm 30 mm 28.2 kN 19.3 kN 0.282 kg
S7304BDF Single Row Series Duples Arrangement Abrir Stainless steel 20 mm 52 mm 30 mm 28.2 kN 19.3 kN 0.282 kg
S7304BDT Single Row Series Duples Arrangement Abrir Stainless steel 20 mm 52 mm 30 mm 28.2 kN 19.3 kN 0.282 kg
S7304DB Single Row Series Duples Arrangement Abrir Stainless steel 20 mm 52 mm 30 mm 30.5 kN 20,8 kN 0.276 kg
S7304DF Single Row Series Duples Arrangement Abrir Stainless steel 20 mm 52 mm 30 mm 30.5 kN 20,8 kN 0.276 kg
S7304DT Single Row Series Duples Arrangement Abrir Stainless steel 20 mm 52 mm 30 mm 30.5 kN 20,8 kN 0.276 kg
S7305B Fila única Abrir Stainless steel 25 mm 62 mm 17 mm 25000 kN 13400 kN 220g kg
S7305B-2RS Fila única Sealed Stainless steel 25 mm 62 mm 17 mm 25000 kN 13400 kN 220g kg
S7305BDB Single Row Series Duples Arrangement Abrir Stainless steel 25 mm 62 mm 34 mm 39,5 kN 29.3 kN 0.468 kg
S7305BDF Single Row Series Duples Arrangement Abrir Stainless steel 25 mm 62 mm 34 mm 39,5 kN 29.3 kN 0.468 kg
S7305BDT Single Row Series Duples Arrangement Abrir Stainless steel 25 mm 62 mm 34 mm 39,5 kN 29.3 kN 0.468 kg
S7305DB Single Row Series Duples Arrangement Abrir Stainless steel 25 mm 62 mm 34 mm 43.0 kN 31,5 kN 0.46 kg
S7305DF Single Row Series Duples Arrangement Abrir Stainless steel 25 mm 62 mm 34 mm 43.0 kN 31,5 kN 0.46 kg
S7305DT Single Row Series Duples Arrangement Abrir Stainless steel 25 mm 62 mm 34 mm 43.0 kN 31,5 kN 0.46 kg
S7306B Fila única Abrir Stainless steel 30 mm 72 mm 19 mm 33700 kN 19400 kN 330g kg
S7306B-2RS Fila única Sealed Stainless steel 30 mm 72 mm 19 mm 33700 kN 19400 kN 330g kg
S7306BDB Single Row Series Duples Arrangement Abrir Stainless steel 30 mm 72 mm 38 mm 50.0 kN 41.0 kN 0.704 kg
S7306BDF Single Row Series Duples Arrangement Abrir Stainless steel 30 mm 72 mm 38 mm 50.0 kN 41.0 kN 0.704 kg
S7306BDT Single Row Series Duples Arrangement Abrir Stainless steel 30 mm 72 mm 38 mm 50.0 kN 41.0 kN 0.704 kg
S7306DB Single Row Series Duples Arrangement Abrir Stainless steel 30 mm 72 mm 38 mm 54.5 kN 44.5 kN 0.69 kg
S7306DF Single Row Series Duples Arrangement Abrir Stainless steel 30 mm 72 mm 38 mm 54.5 kN 44.5 kN 0.69 kg
S7306DT Single Row Series Duples Arrangement Abrir Stainless steel 30 mm 72 mm 38 mm 54.5 kN 44.5 kN 0.69 kg
S7307B Fila única Abrir Stainless steel 35 mm 80 mm 21 mm 37400 kN 22200 kN 430g kg
S7307B-2RS Fila única Sealed Stainless steel 35 mm 80 mm 21 mm 37400 kN 22200 kN 430g kg
S7307BDB Single Row Series Duples Arrangement Abrir Stainless steel 35 mm 80 mm 42 mm 59.5 kN 48.5 kN 0.938 kg
S7307BDF Single Row Series Duples Arrangement Abrir Stainless steel 35 mm 80 mm 42 mm 59.5 kN 48.5 kN 0.938 kg
S7307BDT Single Row Series Duples Arrangement Abrir Stainless steel 35 mm 80 mm 42 mm 59.5 kN 48.5 kN 0.938 kg
S7307DB Single Row Series Duples Arrangement Abrir Stainless steel 35 mm 80 mm 42 mm 65.0 kN 52,5 kN 0.924 kg
S7307DF Single Row Series Duples Arrangement Abrir Stainless steel 35 mm 80 mm 42 mm 65.0 kN 52,5 kN 0.924 kg
S7307DT Single Row Series Duples Arrangement Abrir Stainless steel 35 mm 80 mm 42 mm 65.0 kN 52,5 kN 0.924 kg
S7308B Fila única Abrir Stainless steel 40 mm 90 mm 23 mm 49300 kN 29900 kN 600g kg
S7308B-2RS Fila única Sealed Stainless steel 40 mm 90 mm 23 mm 49300 kN 29900 kN 600g kg
S7309B Fila única Abrir Stainless steel 45 mm 100 mm 25 mm 60500 kN 38800 kN 810g kg
S7309B-2RS Fila única Sealed Stainless steel 45 mm 100 mm 25 mm 60500 kN 38800 kN 810g kg
S7310B Fila única Abrir Stainless steel 50 mm 110 mm 27 mm 72000 kN 47100 kN 905g kg
S7310B-2RS Fila única Sealed Stainless steel 50 mm 110 mm 27 mm 72000 kN 47100 kN 905g kg
S7905 Fila única Abrir Stainless steel 25 mm 42 mm 9 mm 7.15 kN 4.95 kN 0.05 kg
S7906 Fila única Abrir Stainless steel 30 mm 47 mm 9 mm 7.55 kN 5.75 kN 0.058 kg
S7907 Fila única Abrir Stainless steel 35 mm 55 mm 10 mm 12.0 kN 8.85 kN 0.088 kg
S7908 Fila única Abrir Stainless steel 40 mm 62 mm 12 mm 12.7 kN 10.2 kN 0.13 kg
S7909 Fila única Abrir Stainless steel 45 mm 68 mm 12 mm 15.7 kN 12.9 kN 0.15 kg
S7910 Fila única Abrir Stainless steel 50 mm 72 mm 12 mm 16.6 kN 14.5 kN 0.157 kg
S7911 Fila única Abrir Stainless steel 55 mm 80 mm 13 mm 17.3 kN 16.1 kN 0.214 kg
S7912 Fila única Abrir Stainless steel 60 mm 85 mm 13 mm 18.1 kN 17.4 kN 0.23 kg
S7913 Fila única Abrir Stainless steel 65 mm 90 mm 13 mm 18.3 kN 18.0 kN 0.245 kg
S7914 Fila única Abrir Stainless steel 70 mm 100 mm 16 mm 26.2 kN 26.2 kN 0.397 kg
S7915 Fila única Abrir Stainless steel 75 mm 105 mm 16 mm 26.50 kN 27.1 kN 0.42 kg
S7916 Fila única Abrir Stainless steel 80 mm 110 mm 16 mm 26.9 kN 28.0 kN 0.444 kg
S7917 Fila única Abrir Stainless steel 85 mm 120 mm 18 mm 36.0 kN 38.0 kN 0.628 kg
S7918 Fila única Abrir Stainless steel 90 mm 125 mm 18 mm 36.0 kN 38.0 kN 0.658 kg
S7919 Fila única Abrir Stainless steel 95 mm 130 mm 18 mm 37.0 kN 40,5 kN 0.688 kg
S7920 Fila única Abrir Stainless steel 100 mm 140 mm 20 mm 48.0 kN 52,5 kN 0.934 kg
S7921 Fila única Abrir Stainless steel 105 mm 145 mm 20 mm 48.5 kN 54.5 kN 0.972 kg
S7922 Fila única Abrir Stainless steel 110 mm 150 mm 20 mm 49.5 kN 56.0 kN 1,01 kg
S7924 Fila única Abrir Stainless steel 120 mm 165 mm 22 mm 61.0 kN 69.5 kN 1,66 kg
S7926 Fila única Abrir Stainless steel 130 mm 180 mm 24 mm 75.0 kN 87.5 kN 1.82 kg
S7928 Fila única Abrir Stainless steel 140 mm 190 mm 24 mm 75.5 kN 90.0 kN 1.94 kg
S7930 Fila única Abrir Stainless steel 150 mm 210 mm 28 mm 97.5 kN 117 kN 2.96 kg
S7932 Fila única Abrir Stainless steel 160 mm 220 mm 28 mm 98.5 kN 121 kN 3.13 kg
S7934 Fila única Abrir Stainless steel 170 mm 230 mm 28 mm 102 kN 129 kN 3.29 kg
S7936 Fila única Abrir Stainless steel 180 mm 250 mm 33 mm 131 kN 163 kN 4.87 kg
S7938 Fila única Abrir Stainless steel 190 mm 260 mm 33 mm 133 kN 169 kN 5.1 kg
S7940 Fila única Abrir Stainless steel 200 mm 280 mm 38 mm 185 kN 231 kN 7,15 kg
S7944 Fila única Abrir Stainless steel 220 mm 300 mm 38 mm 187 kN 239 kN 7.74 kg
S7948 Fila única Abrir Stainless steel 240 mm 320 mm 38 mm 197 kN 264 kN 8.34 kg
S7952 Fila única Abrir Stainless steel 260 mm 360 mm 46 mm 258 kN 375 kN 14 kg
S7956 Fila única Abrir Stainless steel 280 mm 380 mm 46 mm 261 kN 385 kN 14.8 kg
S7960 Fila única Abrir Stainless steel 300 mm 420 mm 56 mm 325 kN 520 kN 23.7 kg

Más información

Más información

Herramientas
