The YLH stainless steel rod end spherical bearing is a mechanical linkage component that combines strength, flexibility, and durability, designed to provide reliable support under high loads and complex motion conditions. It is widely used in hydraulic and pneumatic systems, industrial automation equipment, agricultural machinery, and various heavy-duty applications—particularly in confined spaces where precise adjustment of linkage angles is required.

Each rod end bearing consists of a rod body with internal or external threads and an integrated radial spherical plain bearing, offering excellent self-aligning capabilities. This allows it to accommodate angular misalignments between connected parts while bearing radial loads. The threaded connection design of the YLH rod end bearing ensures easy installation and adjustment, enhancing the overall system’s stability and responsiveness.

At YLH, we offer rod end spherical bearings made from high-grade stainless steel. Compared to traditional carbon steel or chrome steel options, our stainless steel bearings deliver superior corrosion and wear resistance, making them ideal for applications exposed to moisture, chemicals, or extreme temperatures.

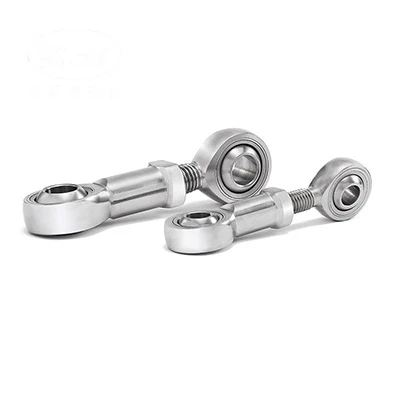

cabezas de rótula macho y hembra
Product NameMaterialThreadThread DirectionDiámetroDiameter HeadStatic Ratings load
SA 10 C Stainless steel Male Right-Hand 10 mm 29 mm 17.6 kN
SA 10 E Stainless steel Male Right-Hand 10 mm 29 mm 22 kN
SA 12 C Stainless steel Male Right-Hand 12 mm 34 mm 24.5 kN
SA 12 E Stainless steel Male Right-Hand 12 mm 34 mm 30.4 kN
SA 15 C Stainless steel Male Right-Hand 15 mm 40 mm 36 kN
SA 15 ES Stainless steel Male Right-Hand 15 mm 40 mm 44.8 kN
SA 15 ES 2RS Stainless steel Male Right-Hand 15 mm 40 mm 44.8 kN
SA 17 C Stainless steel Male Right-Hand 17 mm 46 mm 45 kN
SA 17 ES Stainless steel Male Right-Hand 17 mm 46 mm 56.5 kN
SA 17 ES 2RS Stainless steel Male Right-Hand 17 mm 46 mm 56.5 kN
SA 20 C Stainless steel Male Right-Hand 20 mm 53 mm 60 kN
SA 20 ES Stainless steel Male Right-Hand 20 mm 53 mm 75.6 kN
SA 20 ES 2RS Stainless steel Male Right-Hand 20 mm 53 mm 75.6 kN
SA 25 C Stainless steel Male Right-Hand 25 mm 64 mm 83 kN
SA 25 ES Stainless steel Male Right-Hand 25 mm 64 mm 88.2 kN
SA 25 ES 2RS Stainless steel Male Right-Hand 25 mm 64 mm 88.2 kN
SA 30 C Stainless steel Male Right-Hand 30 mm 73 mm 110 kN
SA 30 C 2RS Stainless steel Male Right-Hand 30 mm 73 mm 110 kN
SA 30 ES Stainless steel Male Right-Hand 30 mm 73 mm 119 kN
SA 30 ES 2RS Stainless steel Male Right-Hand 30 mm 73 mm 119 kN
SA 35 C 2RS Stainless steel Male Right-Hand 35 mm 82 mm 104 kN
SA 35 ES Stainless steel Male Right-Hand 35 mm 82 mm 159 kN
SA 35 ES 2RS Stainless steel Male Right-Hand 35 mm 82 mm 159 kN
SA 40 C 2RS Stainless steel Male Right-Hand 40 mm 92 mm 133 kN
SA 40 ES Stainless steel Male Right-Hand 40 mm 92 mm 194 kN
SA 40 ES 2RS Stainless steel Male Right-Hand 40 mm 92 mm 194 kN
SA 45 C 2RS Stainless steel Male Right-Hand 45 mm 102 mm 190 kN
SA 45 ES Stainless steel Male Right-Hand 45 mm 102 mm 259 kN
SA 45 ES 2RS Stainless steel Male Right-Hand 45 mm 102 mm 259 kN
SA 5 C Stainless steel Male Right-Hand 5 mm 21 mm 8.1 kN
SA 5 E Stainless steel Male Right-Hand 5 mm 21 mm 8.1 kN
SA 50 C 2RS Stainless steel Male Right-Hand 50 mm 112 mm 233 kN
SA 50 ES Stainless steel Male Right-Hand 50 mm 112 mm 313 kN
SA 50 ES 2RS Stainless steel Male Right-Hand 50 mm 112 mm 313 kN
SA 6 C Stainless steel Male Right-Hand 6 mm 21 mm 8.15 kN
SA 6 E Stainless steel Male Right-Hand 6 mm 21 mm 10.2 kN
SA 60 C 2RS Stainless steel Male Right-Hand 60 mm 135 mm 342 kN
SA 60 ES Stainless steel Male Right-Hand 60 mm 135 mm 485 kN
SA 60 ES 2RS Stainless steel Male Right-Hand 60 mm 135 mm 485 kN
SA 70 C 2RS Stainless steel Male Right-Hand 70 mm 160 mm 465 kN
SA 70 ES Stainless steel Male Right-Hand 70 mm 160 mm 564 kN
SA 70 ES 2RS Stainless steel Male Right-Hand 70 mm 160 mm 564 kN
SA 8 C Stainless steel Male Right-Hand 8 mm 24 mm 12.9 kN
SA 8 E Stainless steel Male Right-Hand 8 mm 24 mm 16 kN
SA 80 C 2RS Stainless steel Male Right-Hand 80 mm 180 mm 555 kN
SA 80 ES Stainless steel Male Right-Hand 80 mm 180 mm 689 kN
SA 80 ES 2RS Stainless steel Male Right-Hand 80 mm 180 mm 689 kN
SI 10 C stainless steel Female Right-Hand 10 mm 29 mm 17.6 kN
SI 10 E stainless steel Female Right-Hand 10 mm 29 mm 17.6 kN
SI 12 C stainless steel Female Right-Hand 12 mm 34 mm 24.5 kN
SI 12 E stainless steel Female Right-Hand 12 mm 34 mm 24.5 kN
SI 15 C stainless steel Female Right-Hand 15 mm 40 mm 36 kN
SI 15 ES stainless steel Female Right-Hand 15 mm 40 mm 36 kN
SI 15 ES 2RS stainless steel Female Right-Hand 15 mm 40 mm 36 kN
SI 17 C stainless steel Female Right-Hand 17 mm 46 mm 45 kN
SI 17 ES stainless steel Female Right-Hand 17 mm 46 mm 45 kN
SI 17 ES 2RS stainless steel Female Right-Hand 17 mm 46 mm 45 kN
SI 20 C stainless steel Female Right-Hand 20 mm 53 mm 60 kN
SI 20 ES stainless steel Female Right-Hand 20 mm 53 mm 60 kN
SI 20 ES 2RS stainless steel Female Right-Hand 20 mm 53 mm 60 kN
SI 25 C stainless steel Female Right-Hand 25 mm 64 mm 83 kN
SI 25 ES stainless steel Female Right-Hand 25 mm 64 mm 83 kN
SI 25 ES 2RS stainless steel Female Right-Hand 25 mm 64 mm 83 kN
SI 30 C stainless steel Female Right-Hand 30 mm 73 mm 110 kN
SI 30 ES stainless steel Female Right-Hand 30 mm 73 mm 110 kN
SI 30 ES 2RS stainless steel Female Right-Hand 30 mm 73 mm 110 kN
SI 35 C 2RS stainless steel Female Right-Hand 35 mm 82 mm 150 kN
SI 35 ES stainless steel Female Right-Hand 35 mm 82 mm 146 kN
SI 35 ES 2RS stainless steel Female Right-Hand 35 mm 82 mm 146 kN
SI 40 C 2RS stainless steel Female Right-Hand 40 mm 92 mm 184 kN
SI 40 ES stainless steel Female Right-Hand 40 mm 92 mm 180 kN
SI 40 ES 2RS stainless steel Female Right-Hand 40 mm 92 mm 180 kN
SI 45 C 2RS stainless steel Female Right-Hand 45 mm 102 mm 246 kN
SI 45 ES stainless steel Female Right-Hand 45 mm 102 mm 240 kN
SI 45 ES 2RS stainless steel Female Right-Hand 45 mm 102 mm 240 kN
SI 5 C stainless steel Female Right-Hand 5 mm 21 mm 8.1 kN
SI 5 E stainless steel Female Right-Hand 5 mm 21 mm 8.1 kN
SI 50 C 2RS stainless steel Female Right-Hand 50 mm 112 mm 297 kN
SI 50 ES stainless steel Female Right-Hand 50 mm 112 mm 290 kN
SI 50 ES 2RS stainless steel Female Right-Hand 50 mm 112 mm 290 kN
SI 6 C stainless steel Female Right-Hand 6 mm 21 mm 8.15 kN
SI 6 E stainless steel Female Right-Hand 6 mm 21 mm 8.15 kN
SI 60 C 2RS stainless steel Female Right-Hand 60 mm 135 mm 460 kN
SI 60 ES stainless steel Female Right-Hand 60 mm 135 mm 450 kN
SI 60 ES 2RS stainless steel Female Right-Hand 60 mm 135 mm 450 kN
SI 70 C 2RS stainless steel Female Right-Hand 70 mm 160 mm 535 kN
SI 70 ES stainless steel Female Right-Hand 70 mm 160 mm 610 kN
SI 70 ES 2RS stainless steel Female Right-Hand 70 mm 160 mm 610 kN
SI 8 C stainless steel Female Right-Hand 8 mm 24 mm 12.9 kN
SI 8 E stainless steel Female Right-Hand 8 mm 24 mm 12.9 kN
SI 80 C 2RS stainless steel Female Right-Hand 80 mm 180 mm 654 kN
SI 80 ES stainless steel Female Right-Hand 80 mm 180 mm 695 kN
SI 80 ES 2RS stainless steel Female Right-Hand 80 mm 180 mm 695 kN
