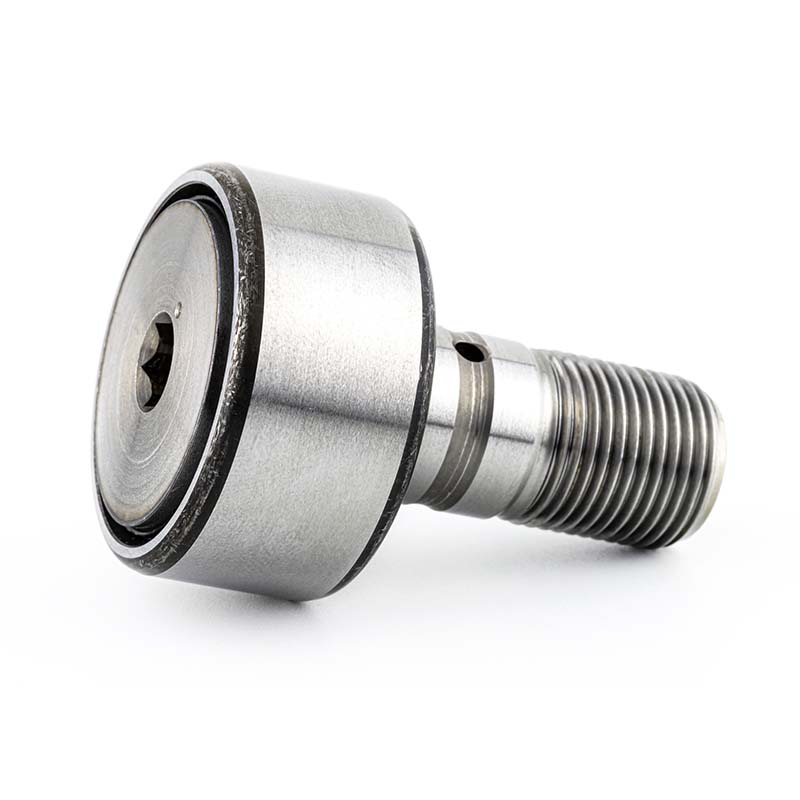

YLH cam followers (stud-type track rollers) are precision bearing assemblies specifically engineered for a wide range of track systems and cam-driven mechanisms. These specialized bearings are constructed based on two primary designs: needle roller bearings and cylindrical roller bearings. A defining feature is the use of a threaded solid stud in place of a traditional inner ring, allowing for direct mounting.

At YLH Bearings, we primarily offer cam followers made from stainless steel, delivering enhanced durability and corrosion resistance for demanding environments.

rodamiento del seguidor de leva
Product NameMaterialThreadsRoller DiaOverall LengthStud DiaBasic dynamic load ratingsPeso
CF 3 FBUU Acero inoxidable M3×0.5 10 mm 17 mm 3 mm 1.2 mm 4.3 g
CF 4 FBUU Acero inoxidable M4×0.7 12 mm 20 mm 4 mm 1.65 mm 7.4 g
CF 5 FBUU Acero inoxidable M5×0.8 13 mm 23 mm 5 mm 1.93 mm 10.3 g
CF 6 FBUU Acero inoxidable M6×1 16 mm 28.2 mm 6 mm 2.93 mm 18.5 g
CF 6 FB Acero inoxidable M6×1 16 mm 28.2 mm 6 mm 2.93 mm 18.5 g
CF 8 FBUU Acero inoxidable M8×1.25 19 mm 32.2 mm 8 mm 3.4 mm 28.5 g
CF 8 FBUUR Acero inoxidable M8×1.25 19 mm 32.2 mm 8 mm 3.4 mm 28.5 g
CF 10 FBR Acero inoxidable M10×1.25 22 mm 36.2 mm 10 mm 4.34 mm 45 g
CF 10 FBUU Acero inoxidable M10×1.25 22 mm 36.2 mm 10 mm 4.34 mm 45 g
CF 10 FBUUR Acero inoxidable M10×1.25 22 mm 36.2 mm 10 mm 4.34 mm 45 g
CF 10 FB Acero inoxidable M10×1.25 22 mm 36.2 mm 10 mm 4.34 mm 45 g
CF 10-1 FB Acero inoxidable M10×1.25 26 mm 36.2 mm 10 mm 4.34 mm 60 g
CF 10-1 FBR Acero inoxidable M10×1.25 26 mm 36.2 mm 10 mm 4.34 mm 60 g
CF 10-1 FBUU Acero inoxidable M10×1.25 26 mm 36.2 mm 10 mm 4.34 mm 60 g
CF 10-1 FBUUR Acero inoxidable M10×1.25 26 mm 36.2 mm 10 mm 4.34 mm 60 g
CF 12 FBR Acero inoxidable M12×1.5 30 mm 40.2 mm 12 mm 6.33 mm 95 g
CF 12 FBUU Acero inoxidable M12×1.5 30 mm 40.2 mm 12 mm 6.33 mm 95 g
CF 12 FBUUR Acero inoxidable M12×1.5 30 mm 40.2 mm 12 mm 6.33 mm 95 g
CF 12 FB Acero inoxidable M12×1.5 30 mm 40.2 mm 12 mm 6.33 mm 95 g
CF 12-1 FB Acero inoxidable M12×1.5 32 mm 40.2 mm 12 mm 6.33 mm 105 g
CF 12-1 FBR Acero inoxidable M12×1.5 32 mm 40.2 mm 12 mm 6.33 mm 105 g
CF 12-1 FBUU Acero inoxidable M12×1.5 32 mm 40.2 mm 12 mm 6.33 mm 105 g
CF 12-1 FBUUR Acero inoxidable M12×1.5 32 mm 40.2 mm 12 mm 6.33 mm 105 g
CF 16 FBR Acero inoxidable M16×1.5 35 mm 52.1 mm 16 mm 9.62 mm 170 g
CF 16 FBUU Acero inoxidable M16×1.5 35 mm 52.1 mm 16 mm 9.62 mm 170 g
CF 16 FBUUR Acero inoxidable M16×1.5 35 mm 52.1 mm 16 mm 9.62 mm 170 g
CF 16 FB Acero inoxidable M16×1.5 35 mm 52.1 mm 16 mm 9.62 mm 170 g
CF 18 FBR Acero inoxidable M18×1.5 40 mm 58.1 mm 18 mm 11.8 mm 250 g
CF 18 FBUU Acero inoxidable M18×1.5 40 mm 58.1 mm 18 mm 11.8 mm 250 g
CF 18 FBUUR Acero inoxidable M18×1.5 40 mm 58.1 mm 18 mm 11.8 mm 250 g
CF 18 FB Acero inoxidable M18×1.5 40 mm 58.1 mm 18 mm 11.8 mm 250 g
CF 20 FBR Acero inoxidable M20×1.5 52 mm 66.1 mm 20 mm 16.5 mm 460 g
CF 20 FBUU Acero inoxidable M20×1.5 52 mm 66.1 mm 20 mm 16.5 mm 460 g
CF 20 FBUUR Acero inoxidable M20×1.5 52 mm 66.1 mm 20 mm 16.5 mm 460 g
CF 20 FB Acero inoxidable M20×1.5 52 mm 66.1 mm 20 mm 16.5 mm 460 g
CF 20-1 FB Acero inoxidable M20×1.5 47 mm 66.1 mm 20 mm 16.5 mm 385 g
CF 20-1 FBR Acero inoxidable M20×1.5 47 mm 66.1 mm 20 mm 16.5 mm 385 g
CF 20-1 FBUU Acero inoxidable M20×1.5 47 mm 66.1 mm 20 mm 16.5 mm 385 g
CF 20-1 FBUUR Acero inoxidable M20×1.5 47 mm 66.1 mm 20 mm 16.5 mm 385 g
CF 3 FBR Acero inoxidable M3×0.5 10 mm 17 mm 3 mm 1.2 mm 4.3 g
CF 3 FBUUR Acero inoxidable M3×0.5 10 mm 17 mm 3 mm 1.2 mm 4.3 g
CF 3 FB Acero inoxidable M3×0.5 10 mm 17 mm 3 mm 1.2 mm 4.3 g
CF 3 FWBR Acero inoxidable M3×0.5 10 mm 17 mm 3 mm 1.2 mm 4.3 g
CF 3 FWBUUR Acero inoxidable M3×0.5 10 mm 17 mm 3 mm 1.2 mm 4.3 g
CF 4 FBR Acero inoxidable M4×0.7 12 mm 20 mm 4 mm 1.65 mm 7.4 g
CF 4 FBUUR Acero inoxidable M4×0.7 12 mm 20 mm 4 mm 1.65 mm 7.4 g
CF 4 FB Acero inoxidable M4×0.7 12 mm 20 mm 4 mm 1.65 mm 7.4 g
CF 4 FWBR Acero inoxidable M4×0.7 12 mm 20 mm 4 mm 1.65 mm 7.4 g
CF 4 FWBUUR Acero inoxidable M4×0.7 12 mm 20 mm 4 mm 1.65 mm 7.4 g
CF 5 FBR Acero inoxidable M5×0.8 13 mm 23 mm 5 mm 1.93 mm 10.3 g
CF 5 FBUUR Acero inoxidable M5×0.8 13 mm 23 mm 5 mm 1.93 mm 10.3 g
CF 5 FB Acero inoxidable M5×0.8 13 mm 23 mm 5 mm 1.93 mm 10.3 g
CF 5 FWBR Acero inoxidable M5×0.8 13 mm 23 mm 5 mm 1.93 mm 10.3 g
CF 5 FWBUUR Acero inoxidable M5×0.8 13 mm 23 mm 5 mm 1.93 mm 10.3 g
CF 6 FBR Acero inoxidable M6×1 16 mm 28.2 mm 6 mm 2.93 mm 18.5 g
CF 6 FBUUR Acero inoxidable M6×1 16 mm 28.2 mm 6 mm 2.93 mm 18.5 g
CF 8 FBR Acero inoxidable M8×1.25 19 mm 32.2 mm 8 mm 3.4 mm 28.5 g
CF 8 FB Acero inoxidable M8×1.25 19 mm 32.2 mm 8 mm 3.4 mm 28.5 g
CF10 Acero inoxidable - 22 mm 36.2 mm 10 mm - mm 44 g
CF10-1 Acero inoxidable - 26 mm 36.2 mm 10 mm - mm 58 g
CF12 Acero inoxidable - 30 mm 40.2 mm 12 mm - mm 87 g
CF12-1 Acero inoxidable - 32 mm 40.2 mm 12 mm - mm 90 g
CF16 Acero inoxidable - 35 mm 52.1 mm 16 mm - mm 169 g
CF18 Acero inoxidable - 40 mm 58.2 mm 18 mm - mm 247 g
CF20 Acero inoxidable - 47 mm 66.1 mm 20 mm - mm 386 g
CF20-1 Acero inoxidable - 52 mm 66.1 mm 20 mm - mm 461 g
CF24 Acero inoxidable - 62 mm 80.1 mm 24 mm - mm 790 g
CF24-1 Acero inoxidable - 72 mm 80.1 mm 24 mm - mm 1040 g
CF30 Acero inoxidable - 80 mm 100 mm 30 mm - mm 1550 g
CF30-1 Acero inoxidable - 85 mm 100 mm 30 mm - mm 1740 g
CF30-2 Acero inoxidable - 90 mm 100 mm 30 mm - mm 1950 g
CF5 Acero inoxidable - 13 mm 23 mm 5 mm - mm 16 g
CF6 Acero inoxidable - 16 mm 28.2 mm 6 mm - mm 18 g
CF8 Acero inoxidable - 19 mm 32.2 mm 8 mm - mm 28 g
CFS 2 F Acero inoxidable M2×0.4 4.5 mm 8 mm 2 mm 0.23 mm 0.6 g
CFS 2 FV Acero inoxidable M2×0.4 4.5 mm 8 mm 2 mm 0.614 mm 0.6 g
CFS 2 FW Acero inoxidable M2×0.4 4.5 mm 8.5 mm 2 mm 0.23 mm 0.6 g
CFS 2.5 F Acero inoxidable M2.5×0.45 5 mm 9.5 mm 2.5 mm 0.342 mm 1 g
CFS 2.5 FV Acero inoxidable M2.5×0.45 5 mm 9.5 mm 2.5 mm 0.8 mm 1 g
CFS 2.5 FW Acero inoxidable M2.5×0.45 5 mm 10 mm 2.5 mm 0.342 mm 1 g
CFS 3 F Acero inoxidable M3×0.5 6 mm 11.5 mm 3 mm 0.504 mm 2 g
CFS 3 FV Acero inoxidable M3×0.5 6 mm 11.5 mm 3 mm 1.14 mm 2 g
CFS 3 FW Acero inoxidable M3×0.5 6 mm 12.5 mm 3 mm 0.504 mm 2 g
CFS 4 F Acero inoxidable M4×0.7 8 mm 15 mm 4 mm 0.897 mm 4 g
CFS 4 FV Acero inoxidable M4×0.7 8 mm 15 mm 4 mm 1.9 mm 4 g
CFS 4 FW Acero inoxidable M4×0.7 8 mm 16 mm 4 mm 0.897 mm 4 g
CFS 5 F Acero inoxidable M5×0.8 10 mm 18 mm 5 mm 1.25 mm 7 g
CFS 5 FV Acero inoxidable M5×0.8 10 mm 18 mm 5 mm 2.54 mm 7 g
CFS 5 FW Acero inoxidable M5×0.8 10 mm 19 mm 5 mm 1.25 mm 7 g
CFS 6 F Acero inoxidable M6×1 12 mm 21.5 mm 6 mm 1.67 mm 13 g
CFS 6 FV Acero inoxidable M6×1 12 mm 21.5 mm 6 mm 3.69 mm 13 g
CFS 6 FW Acero inoxidable M6×1 12 mm 22.5 mm 6 mm 1.67 mm 13 g
