New Model No.: KR22
Brand: YLH
Bearing Type: Roller cam follower Bearing
Texture: Stainless Steel
Old Model No.: CF10

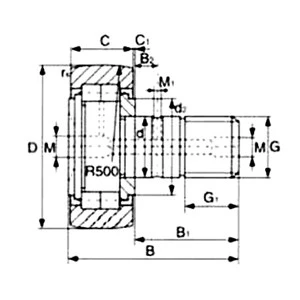

Roller Dia/D: 22 mm
Roller Width/C: 12 mm
Threads/G: M10X1.25
Stud Dia/d1: 10 mm
Minimum Thread Length/G1: 12 mm
B: 13.2 mm
Overall Length/B1: 36.2 mm
Stud Length/B2: 23 mm
Width of flats/B3: – mm
Shoulder Length/C1: 0.6 mm
ramin: 0.3 mm
Eccentricity: 0.3
dynamic load ratings: 410 kgf
static load ratings: 320 kgf
Limits of speed: 17000 rpm
RoHS: Compliant
REACH: Compliant
